BAG DUMP STATION

MULTI-BAG INGREDIENT EMPTYING

AXIS Bag Dump Stations are designed to provide a clean, controlled point for emptying multiple bags of bulk ingredients into your line. Built to support operator access and efficient loading, the system enables high-volume material introduction in production lines.

USES:
  • Sugars
  • Flour
  • Salt
  • Seasonings
  • Seeds
  • Jimmies
  • Chocolate chips
  • Diced nuts
  • Coconut flakes
  • Dried vegetable and fruit pieces
  • And more
PRECISION: Dust-controlled material handling.

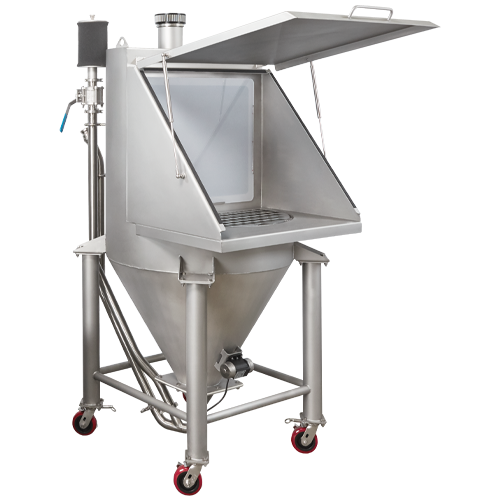

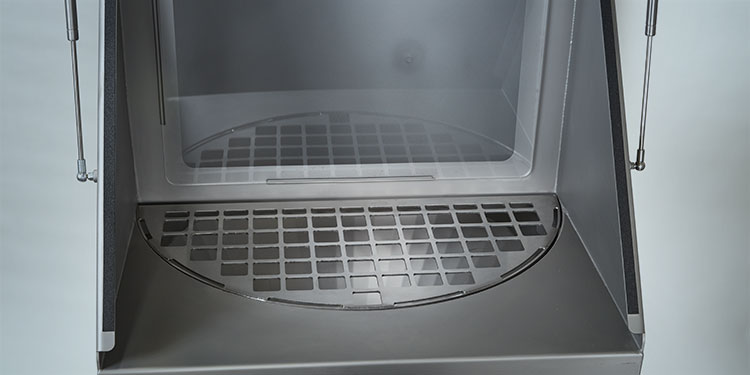

The AXIS Bag Dump Station minimizes dust hazards while allowing efficient, unrestricted material flow. A waist-height support structure enables operators to empty multiple bags with ease, while dust is drawn away from the work area into a separate collection chamber with inspection visibility. Air regulation at operator level allows simple adjustment of product fluidization to match material characteristics.

FLEXIBILITY: Adjustable operation and system connectivity.

Designed for efficiency and productivity, this bag dump hopper is conically-shaped with 60° angled walls and pulsing vibration to increase product flow. Gas shocks lift the lid and keep it open while the bag is emptied. Door switch triggers vacuum to pull a slow, negative pressure on emptied material, minimizing the spread of dust. Air regulator features markings for recording different product settings and a Teflon filter for maximum protection from allergens. Connect the bag dump station to your offsite dust collection or an AXIS Vacuum Conveyor.

RELATED PRODUCT

Refill & Reclaim Hopper

Recover, recycle and gently handle unused ingredients to reduce waste.

Topper

A dry topping system that evenly applies flowable ingredients across products for consistent coverage.

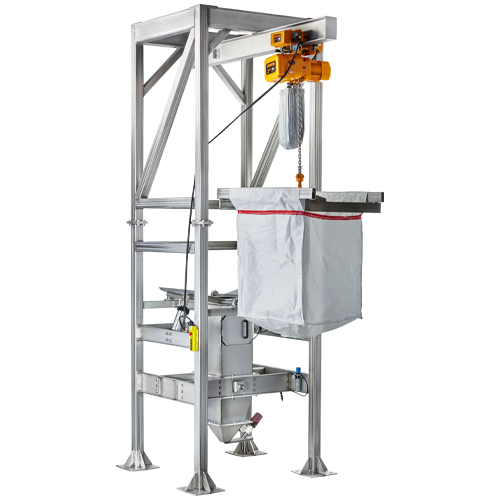

Bulk Bag Unloader

A bulk handling system that safely and cleanly unloads large bags of dry ingredients into downstream processing equipment.
